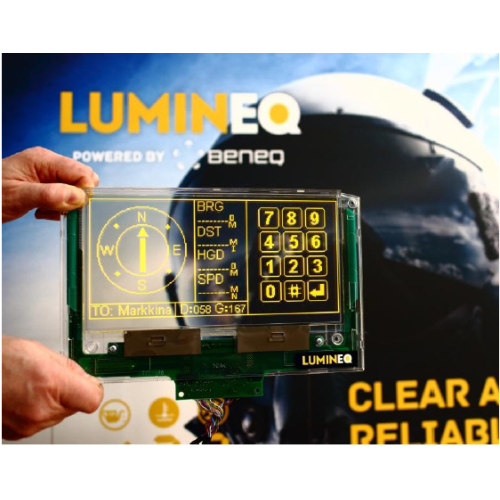

  • ELT.256.120.90
  • 產品廠牌: LUMINEQ
    產品簡述: 1. Color:yellow 2. Viewing angle: 360°, fully transparent 3. Response time: < 1 ms 4. Luminance: 80 cd/m2 typical areal 5. Transparency: 73% typical 6. Resolution: 256 × 120 pixels 7. Pixel size: 0.80 × 0.80 mm 8. Display size: 280 × 193.4 × 12.1 mm (with
    Nation of Principal:Finland
    Product Application:1.High Contrast
                                          2.200g shock
                                          3.250,000 hour MTBF
                                          4.100,000 hour @85% brightness
                                          5.-100C ~ 100C
    Related Link:
    http://lumineq.com/
    Keywordpanel / EL/ display / electroluminance / Extreme condition
製程說明
use ALD to deposit thin film on the glass and through its electroluminance property to generate light for display
